WACHENDORFF編碼器,測速電機及聯軸器等附件

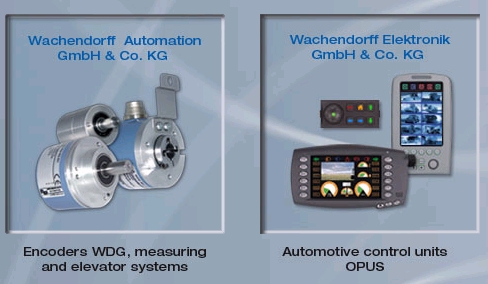

德國WACHENDORFF（沃申道夫）公司專業(yè)生產移動平臺和行走機械控制板及增量型編碼器，公司技術力量雄厚，擁有眾多經驗豐富的技術工程人員，其編碼器有實心軸、中空軸、方波和正弦波等多種，廣泛用于行走機械、電梯、起重機、冶金等場合，具有精度高、防塵防污效果好、耐沖撞、壽命長等特點。幾十年來，Wachendorff公司的核心價值觀一直是為控制、檢測、優(yōu)化工控系統設計生產銷售優(yōu)秀設備。Wachendorff以產品廣泛應用于惡劣的環(huán)境而贏得美譽，同時公司產品也大量應用于便攜式或可移動的操作平臺。 具體產品有： Opus 系列 OPUS A1 , OPUS A2 , OPUS Thor ,OPUS 21 WDG 系列 WDG 58B , WDG SSI , WDG 40A , WDG 80H , WDG 58V , WDG 58K, WDG 115T , WDG 115M 等 WDG 58B-1500-ABN-G24-K3 WDG 40A-500-ABN-I24-K2 WDG 53S-5000-ABN-I24-K2 WDG 90B-1024-AB-H30-S2 WDG 115T-2048-AB-R30-S3 WDG 115M-1800-ABN-G24-S3 SZG 65-1250-N-UP-G24-05 WDG-DPB1B-0013-C100-0CC WDG-SL00G-1213-C100-CRW WDG-S100G-0013-B150-PRL WDG-C8B1B-0013-C100-CRW WDGHA1005 WDGHA1210

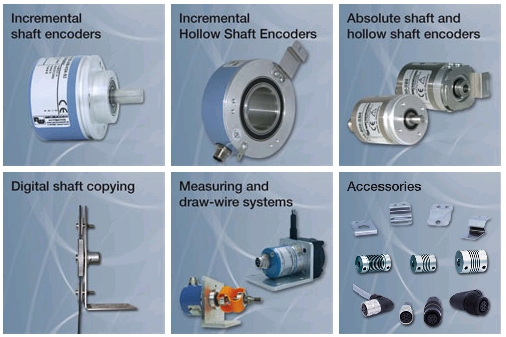

WACHENDORFF Shaft encoders incremental WDG 24A Shaft Encoder WDG 24A, Synchro flange: ? 24 mm Shaft: ? 6 mm, protection rating: up to IP67 all around, resolution: up to 1024 ppr, Signal shape: square-wave. DETAILS Data sheet (PDF 91 KB) WDG 24C Shaft Encoder WDG 24C, Synchro flange: ? 24 mm Shaft: ? 6 mm, protection rating: up to IP67 all around, resolution: up to 1024 ppr, Signal shape: square-wave. DETAILS Data sheet (PDF 99 KB) WDG 40A Shaft Encoder WACHENDORFF WDG 40A, Servo flange: ? 40 mm Shaft: ? 6 mm, protection rating: up to IP67 all around, resolution up to 2500 ppr, Signal shape: square-wave. DETAILS Data sheet (PDF 104 KB) WDG 40S Shaft Encoder WDG 40S, Screw flange: ? 40 mm Shaft: ? 6 mm, protection rating: up to IP67 all around, resolution: up to 2500 ppr, Signal shape: square-wave. DETAILS Data sheet (PDF 97 KB) WDG 50B Shaft Encoder WDG 50B, Clamping flange: ? 50 mm, Shaft: ? 8 mm, protection rating: up to IP67 all around, resolution: up to 2500 ppr, Signal shape: square-wave. WACHENDORFF DETAILS Data sheet (PDF 86 KB) WDG 53S Shaft Encoder WDG 53S , Screw flange: ? 53 mm Suitable for use in saltwater Shaft: ? 6 mm, protection rating: IP68 all around, resolution: up to 1500 ppr, Signal shape: square-wave. DETAILS Data sheet (PDF 81 KB) WDG 53V Shaft Encoder WDG 53V, Screw flange: ? 53 mm Suitable for use within the food industry Shaft: ? 6 mm, protection rating: IP68 all around, resolution: up to 1500 ppr, Signal shape: square-wave. DETAILS Data sheet (PDF 65 KB) WDG 58A Shaft Encoder WDG 58A, Synchro flange: ? 58 mm Shaft: ? 6 mm, protection rating: up to IP67 all around, resolution: up to 25000 ppr, Signal shape: square-wave or sine/cosine. DETAILS Data sheet (PDF 145 KB) WDG 58B Shaft Encoder WDG 58B, Clamping flange: ? 58 mm Shaft: ? 10 mm, protection rating: up to IP67 all around, resolution: up to 25000 ppr, Signal shape: square-wave or sine/cosine. DETAILS Data sheet (PDF 160 KB) WDG 58C Shaft Encoder WDG 58C, Synchro flange: ? 58 mm Shaft: ? 10 mm, protection rating: up to IP67 all around, resolution: up to 25000 ppr, Signal shape: square-wave or sine/cosine. DETAILS Data sheet (PDF 142 KB) WDG 58D Shaft Encoder WDG 58D, Clamping flange: ? 58 mm Shaft: ? 12 mm, protection rating: up to IP67 all around, resolution: up to 25000 ppr, Signal shape: square-wave or sine/cosine. DETAILS Data sheet (PDF 168 KB) WDG 58K WACHENDORFF Shaft Encoder WDG 58K, Clamping flange: ? 58 mm Shaft: ? 6 mm, protection rating: up to IP67 all around, resolution: up to 25000 ppr, Signal shape: square-wave or sine/cosine. DETAILS Data sheet (PDF 159 KB) WDG 58T Shaft Encoder WDG 58T, Clamping flange: ? 58 mm Available ex-stock Shaft: ? 10 mm, protection rating: IP50, shaft sealed to IP54, resolution: 360 ppr, 500 ppr, 1024 ppr, Signal shape: square-wave. DETAILS Data sheet (PDF 79 KB) WDG 58V Shaft Encoder WDG 58V, Clamping flange: ? 58 mm Especially for food and beverage industry Shaft: ? 10 mm, protection rating: IP67 + IP69K, resolution: up to 25000 ppr, Signal shape: square-wave. DETAILS Data sheet (PDF 174 KB) WDG 63B Shaft Encoder WACHENDORFF WDG 63B, Clamping flange: ? 2.5" (63 mm) Shaft: ? 3/8" (9.525 mm), protection rating: up to IP67 all around, resolution: up to 25000 ppr, Signal shape: square-wave or sine/cosine. DETAILS Data sheet (PDF 191 KB) WDG 63Q Shaft Encoder WDG 63B, Clamping flange: ? 2.5 ", (63 mm) Shaft: ? 3/8" (9.525 mm), protection rating: up to IP67 all around, resolution: up to 25000 ppr, DETAILS Data sheet (PDF 173 KB) WDG 67Q Shaft Encoder WDG 67Q, Square flange: 2.65" (67.3 mm) Shaft: ? 3/8", (9.525 mm), protection rating: up to IP67 all around, resolution: up to 25000 ppr, Signal shape: square-wave or sine/cosine. DETAILS Data sheet (PDF 170 KB) WDG 90B Shaft Encoder WDG 90B, Clamping flange: ? 90 mm Shaft: ? 12 mm, protection rating: up to IP67 all around, resolution: up to 25000 ppr, Signal shape: square-wave or sine/cosine. DETAILS Data sheet (PDF 173 KB) WDG 115M Shaft Encoder WDG 115M, Tacho flange: ? 115 mm Shaft: ? 11 mm, protection rating: up to IP67 all around, resolution: up to 25000 ppr, Signal shape: square-wave or sine/cosine. DETAILS Data sheet (PDF 172 KB) WDG 115T Shaft Encoder WDG 115T, Tacho flange: ? 115 mm Shaft: ? 10 mm, protection rating: up to IP67 all around, resolution: up to 25000 ppr, Signal shape: square-wave or sine/cosine.
WACHENDORFF WDG 40E Hollow Bore (blind) Encoder WDG 40E: ? 40 mm bore size: ? 6 mm, Protection rating: IP67, Shaft sealed to IP65, Resolution: up to 2500 ppr, Signal shape: square-wave. DETAILS Data sheet (PDF 144 KB) WDG 58E Hollow Bore (blind) Encoder WDG 58E: ? 58 mm NEW! Hollow Bore (blind) Encoder: bore size 15 mm bore size: ? 8, 10, 12, 15 mm, H7, protection rating: IP67, shaft sealed to IP65, resolution: up to 25000 ppr, Signal shape: square-wave or sine/cosine. DETAILS Data sheet (PDF 134 KB) WDG 58H Thru-Bore Encoder WDG 58H: ? 58 mm bore size: ? 8, 10, 12, 14 mm, H7, protection rating: IP65, resolution: up to 25000 ppr, Signal shape: square-wave or sine/cosine. DETAILS Data sheet (PDF 130 KB) WACHENDORFF WDG 80H Thru-Bore Encoder WDG 80H: ? 80 mm bore size: ? 10, 12, 15, 18, 20, 25 mm, H8, protection rating: IP65, resolution: up to 3840 ppr, signal shape: square-wave or sine/cosine. DETAILS Data sheet (PDF 113 KB) WDG 100H Thru-Bore Encoder WDG 100H: ? 100 mm bore size: ? 25, 28, 30, 32, 38, 40, 42, 45 mm, protection rating: IP54, resolution: up to 5000 ppr, signal shape: square-wave or sine/cosine. DETAILS Data sheet (PDF 158 KB) WDG 145H Thru-Bore Encoder WDG 145H: ? 145 mm bore size: ? 48, 55, 65, 72 mm, protection rating: IP54, resolution: 1024 ppr, 2500 ppr, Signal shape: square-wave.
WACHENDORFF WDG-SL-S Absolute shaft encoder SSI, WDG-SL-S060 synchro flange; housing: ? 58 mm 12/13-Bit Single-/Multiturn; shaft: ? 6 mm; preset optional; binary or gray code DETAILS Data sheet (PDF 259 KB) WDG-SL-C Absolute shaft encoder SSI, WDG-SL-C100 clamping flange; housing: ? 58 mm 12/13-Bit Single-/Multiturn; shaft: ? 10 mm; preset optional; binary or gray code DETAILS Data sheet (PDF 292 KB) WDG-SL-B Absolute hollow bore (blind) encoder SSI, WDG-SL-B150 housing: ? 58 mm 12/13-Bit Single-/Multiturn; hollow bore (blind): ? 15 mm; Preset optional; binary or gray code DETAILS Data sheet (PDF 239 KB) WDG-CA-C Absolute shaft encoder CANopen, WDG-CA-C100 clamping flange; housing: ? 58 mm 12/13-Bit Single-/Multiturn; shaft: ? 10 mm; Communication Profile According to DS 301; Device Profiles DS 406; binary code DETAILS Data sheet (PDF 303 KB) WDG-DP-S Absolute shaft encoder Profibus DP, WDG-DP-S060 synchro flange; housing: ? 58 mm 12/13-Bit Single-/Multiturn; shaft: ? 6 mm; connection-cap DETAILS Data sheet (PDF 301 KB) WDG-DP-C Absolute shaft encoder Profibus DP, WDG-DP-C100 clamping flange; housing: ? 58 mm 12/13-Bit Single-/Multiturn; shaft: ? 10 mm; connection-cap DETAILS Data sheet (PDF 305 KB) WDG-DP-B Absolute hollow bore (blind) encoder Profibus DP, WDG-DP-B150 housing: ? 58 mm 12/13-Bit Single-/Multiturn; hollow bore (blind): ? 15 mm; connection-cap DETAILS Data sheet (PDF 204 KB) WDGM-S1-S Absolute shaft encoder absolut SSI, WDGM-S1-S synchro flange; housing: ? 36,5 mm 12/12-Bit Single-/Multiturn; shaft: ? 6 mm; binary or gray code DETAILS Data sheet (PDF 85 KB) WDGM-S1-C Absolute shaft encoder absolut SSI, WDGM-S1-C clamping flange; housing: ? 36,5 mm 12/12-Bit Single-/Multiturn; shaft: ? 10 mm; binary or gray code DETAILS Data sheet (PDF 93 KB) WDGM-S1-B Absolute hollow bore (blind) encoder absolut SSI, WDGM-S1-B housing: ? 36,5 mm 12/12-Bit Single-/Multiturn; hollow bore (blind): ? 6 mm; binary or gray code DETAILS Data sheet (PDF 83 KB) WDGA36A Absolute shaft encoder CANopen WDGA36A Synchro flange; Housing: ? 36 mm 12/18-Bit Single-/Multiturn; Shaft: ? 6 mm; Communication Profile according to CiA DS-301 Device Profile for encoder CiA DS-406 V3.2 class C2; binary code DETAILS WDGA58B Absolute shaft encoder CANopen WDGA58B Clamping flange; Housing: ? 58 mm 12/18-Bit Single-/Multiturn; Shaft: ? 10 mm; Communication Profile according to CiA DS-301 Device Profile for encoder CiA DS-406 V3.2 class C2; binary code DETAILS WDGA36E Absolute hollow bore (blind) encoder CANopen WDGA36E Housing: ? 36 mm 12/18-Bit Single-/Multiturn; Bore size: ? 6 mm; Communication Profile according to CiA DS-301 Device Profile for encoder CiA DS-406 V3.2 class C2; binary code
