德國NETTER-VIBRATION振動器， NETTER VIBRATION氣動振動器，NETTER VIBRATION電動振動器，NETTER VIBRATION不銹鋼振動器，NETTER VIBRATION液壓振動器，NETTER-VIBRATION振蕩器，NETTER-VIBRATION振動儀
NETTER VIBRATION公司主要活躍于震蕩器技術領域．從1953年開始給建筑工業提供震蕩器。后來供應范圍發展到其他領域，如化工、機械工程和食品工業等。它的種類也非常齊全。 NETTER-VIBRATION產品主要有: ATEX震動器，工廠機器，控制系統及備件，氣動振動器；液壓震動器；不銹鋼振動器；特殊振動器；機械廠；控制系統；配件；測量儀器。 NETTER-VIBRATION氣動振動器功能與優點： • 氣壓低消費 • 頻率或脈沖經可調空氣壓力 • 振幅線性振動器，可調經排氣 ATEX認證或不銹鋼版本 有3種不同的工作原則： • 旋轉式振動器產生旋轉震動 • 線性振動器產生直線振動 • 撞擊產生的沖動 振動特性的每一個振動器基本上是確定的這三個工作原則。 • 旋轉式振動器主要產生高頻振動，低振幅 • 直線振動產生的低頻振動具有較高振幅 • 產生沖動可比，一錘的打擊。每3個工作原則：有自己的具體振動特性。分別應用發號施令，其中原則上可以得到最有效的執行。我們的應用工程師們會很樂意提供意見。 NETTER-VIBRATION代表型號有： Netter氣壓式滾軸式振動器NCR型 Netter氣壓式滾軸式振動器NCR型 Netter氣壓式滾軸式振動器NCR型 Netter氣壓式渦輪振動器NCT系列 Netter活塞往復式振動器 NTK型 NEG-、NEG5060 、NEG2570 、NEA-、NEA5020、NEA504 、NFP-、NFP18S-、NCB-、NCB20-、NCT-、NCT 4 、NCR-、NCR3 、NCR120 、NTK-、NTK8AL、NTK18AL 、NTK25

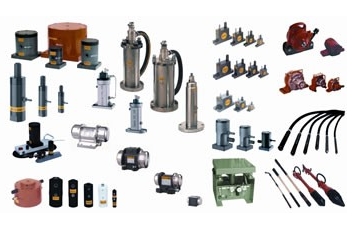

NETTER VIBRATION Pneumatic vibrators NETTER VIBRATION Electric vibrators NETTER VIBRATION Hydraulic vibratorsATEX vibratorsStainless steel vibratorsPlant machineryControl systemsAccessories
Netter vibrators find their application in almost all industrial fields. Besides the classic applications in the field of bulk material handling, we are continuously developing new solutions together with our customers, in order to improve production processes or introduce new applications. Each of the available vibrator types has its own specific features and it is often these features which make a solution at all possible. Some vibrators generate rotary vibration, while others generate linear vibration. For some types of vibrator, it is possible to adjust frequency and amplitude independently whilst running. Other devices exhibit special vibration characteristics. We also offer vibrators for explosive environments according to ATEX regulations and stainless steel vibrators for chemical and food applications. We supply vibrators with pneumatic, electric and hydraulic drives and are therefore able to solve almost every imaginable problem arising in production, conditioning and material handling, in most industries.
Netter Pneumatic Vibrators Features and benefits of Netter pneumatic vibrators and impactors : Low air consumption Frequency or impulse adjustable via air pressure Amplitude of linear vibrators adjustable via the exhaust ATEX or stainless steel versions available There are 3 different working principles: Rotary vibrators generate rotary vibrations Linear vibrators generate linear vibrations Impactors generate impulses The vibration characteristics of each vibrator are essentially defined by these 3 working principles. Rotary vibrators mainly generate high frequency vibrations with low amplitude Linear vibrators generate lower frequency vibrations with higher amplitudes Knockers generate impulses comparable to a hammer blow. Each of the 3 working principles has its own specific vibration characteristics. The respective application dictates which principle can be most effectively implemented. Our application engineers will be pleased to advise. Netter supplies solutions. Rotary vibrators Linear vibrators Impactors from to from to from to Nominal frequency (min1) 1.800 46.800 113 8.738 - - Centrifugal force (N) 277 62.260 11 31.400 - - Unbalance (cmkg) 0,005 113 0,01 368 - - Max. impulse (Ns) - - - - 2,2 114,4 Work per impact (Nm) - - - - 6 324 Kind of vibration rotary linear linear
Netter Electric Vibrators Benefits and features of Netter electric vibrators: The driving energy is electricity Voltages from 12 Volt DC up to 690 Volt AC Frequency from 50 to 200 Hz or adjustable by means of frequency converters Rotary vibration Easy to clean, smooth surfaces Resistant to aggressive environments Special stainless steel versions and explosion proof versions according to ATEX regulations are available Netter electric vibrators are available as external vibrators and as internal vibrators. External vibrators are mounted to the structure to be vibrated (feeder, hopper discharge, precast form, etc.). Internal vibrators are placed into the product to be vibrated (concrete, bulk material, etc.), and are therefore subject to a certain amount of wear, due to abrasion from the product. External vibrators Internal vibrators from to from to Frequency (min-1) 750 3.600 12.000 12.000 Centrifugal force (N) 40 217.700 1.160 10.470 Working moment (cmkg) 0,08 4.901 - - Radius of effectiveness (cm) - - 40 160 Compaction rate (m3/h) - - 16 65 Kind of vibration rotary rotary
Netter Hydraulic Vibrators Benefits and features of Netter hydraulic vibrators: Rotary vibrations High working moments, large amplitudes Favourable power to weight ratio Variable frequency Netter hydraulic vibrators are available as external vibrators and as internal vibrators. External vibrators are mounted to the structure to be vibrated (feeder, hopper discharge, precast form, etc.). Internal vibrators are placed into the product to be vibrated (concrete, bulk material, etc.), and are therefore subject to a certain amount of wear due to abrasion from the product. External vibrators Internal vibrators from to from to Frequency (min-1) 1.750 4.000 6.000 8.000 Centrifugal force (N) 7.270 44.110 12.970 23.068 Working moment (cmkg) 2,06 119 6,57 6,57 Working width (cm) - - 180 360 Compaction rate (m3/h) - - 75 135 Kind of vibration rotary rotary
Netter ATEX-Vibrators NetterVibration has been supplying an extensive range of vibrators for use in potentially explosive areas, according to ATEX regulation 94/9/EC, since 2003. All of the devices comply with the requirements of this regulation. The ignition potential of each vibrator has been evaluated according to the formalised procedure of EN 13463-1. This results in a series of ATEX conforming vibrators with special application rules. Details can be found on the declaration of conformity or in the operating manual that comes with the vibrator. You should be aware that only vibrators showing a registration number or documentation number on their name plate can give you the certainty that the stipulated procedure for the evaluation of conformity has been conducted, and that the vibrator you have in your hand is really suitable for use in potentially explosive areas. The Netter ATEX vibrators are summarized in the following table.
Netter Stainless Steel Vibrators leaflet Electric External Vibrators Series NEG S / NEA S Power supply 230/400 V 50/60 Hz or 230V AC Integrated connector box Maintenance free Smooth housing surface Stainless steel unbalance covers and housing Directional rotary vibrations Protection IP 66-7, Iso class F Applications Driving feeders and sieves In the food, chemical and pharmaceutical industries Relieving product congestions Loosening adhesions -------------------------------------------------------------------------------- leaflet Pneumatic Turbine Vibrators Series NCT S Operats using oil-free compressed air Nominal frequency 4.440-40.500 min-1 Centrifugal force 294 - 8.537 N Frequency continuously adjustable Low noise level Maintenance free Resistant to aggressive environments ATEX version available Applications Moving bulk materials Reducing friction Emptying hoppers Driving chutes, sieves and vibrating tables Preventing adhesion in pipes and on plates -------------------------------------------------------------------------------- leaflet Pneumatic Piston Vibrators Series NTK S Variable vibration mass Directional linear vibration High amplitude Amplitude and frequency can be adjusted independently Nominal frequency 420 - 3.600 min-1 Centrifugal force 11 - 7.400 N ATEX version available Applications Driving feeders and dischargers Loosening or compacting bulk materials Mechanical stimulation of processes -------------------------------------------------------------------------------- leaflet Pneumatic Piston Vibrators Series NTS S Linear vibration Resistant against aggressive invironmental conditions Nominal frequency from 827 - 9.040 min-1 Centrifugal force 32 - 21.808 N Frequency and amplitude are adjustable separately Synchronous operation possible (NTS 350 and higher) Available in ATEX complient or in stainless steel Applications Especially suitable for conveying, compacting and loosening bulk material To empty bins Drives for conveyor and dosing throughs -------------------------------------------------------------------------------- leaflet Pneumatic Piston Vibrators Series NTP S High impact frequency Soft and hard impacting versions Directional linear vibration Resistant to aggressive environments Nominal frequency 1.200 - 8.400 min-1 Centrifugal force 65 – 1.883 N Amplitude and frequency can be adjusted independently ATEX version available Applications Knocking off adhesions in funnels, containers, silos and hoppers Relieving product congestions Driving vibrating tables -------------------------------------------------------------------------------- leaflet Pneumatic Impactors Series PKL S Impulses of up to 114 Ns Low air requirement for each impact Impulse adjustable via pressure Rubber hammer version with elastomer insert EE Version with automatic control ST of impact sequence ATEX version available Applications Knocking stubborn adhesions off walls, pipes and containers Relieving product congestions
